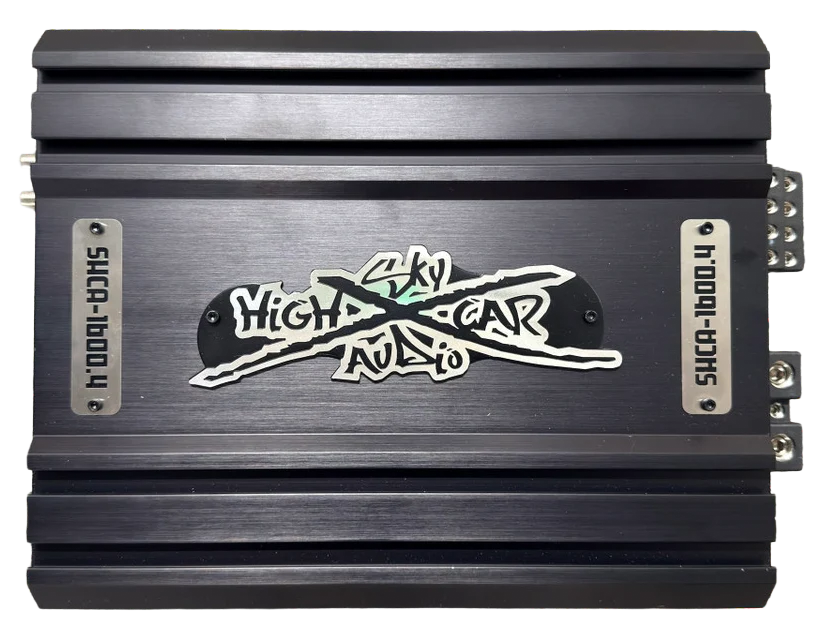

Sky High Car Audio 1600.4 Amplifier

The SHCA1600.4 is Sky High’s compact workhorse: a Korean-built, Class D 4-channel that delivers clean, controlled power with the same modular mounting and customization system as the big amps. Whether you’re running an active front stage, pro audio door build, or a clean daily setup with mids and highs, this amp is designed to stay cool, stay stable, and stay in control.



With 2 ohm stereo / 4 ohm bridged capability, full analog controls, and ultra-fast switching, the SHCA1600.4 gives you the flexibility to grow your system while keeping your footprint small and your install super clean.









Core Highlights





| Korean Built | Class D | 2Ω Stable | Individually QC Tested | Full Active Capable | Ultra Fast Switching | Balanced Input Circuit | Onboard Synchronizer | Bridgeable | 3 Levels of Modular Cooling | Premium Customization in Color, Mounting & Appearance | Acrylic Back | Expansion-Ready |

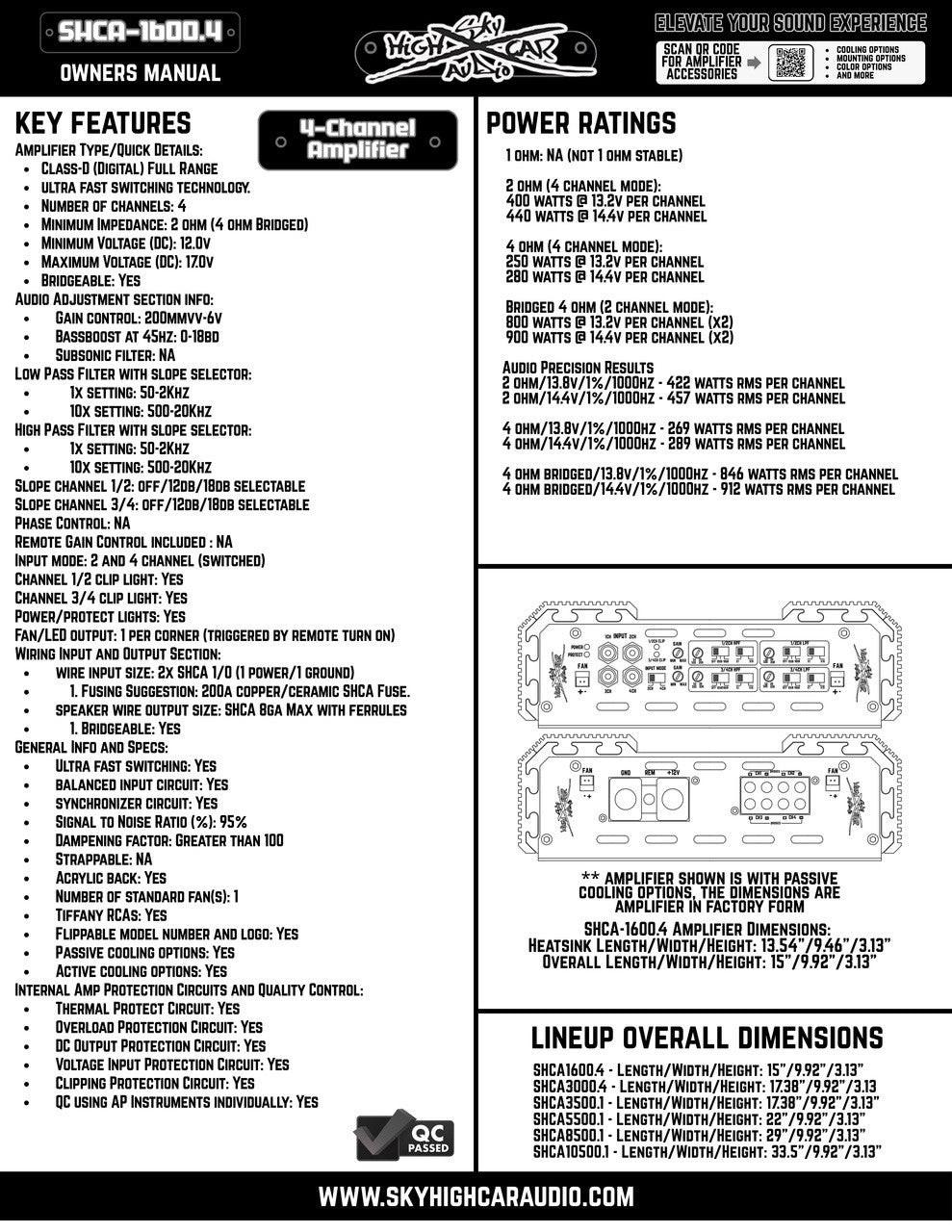

Power & Ratings





• Minimum Ohm Ratings (Per Configuration):

• 2 ohm per channel (stereo mode)
• 4 ohm bridged
• Not 1 ohm rated – wiring below 2Ω stereo or 4Ω bridged is not supported or warrantied
• Rated Output:

• Rated at 13.2V @ 2Ω per channel @ 1000Hz (all channels loaded)
• Operating Voltage:

• Up to 17.0VDC max operating voltage
• Warranty:

• 1-Year Manufacturer Warranty covering manufacturer defects from date of purchase
• Korean Engineered & Assembled:

• Designed from the ground up by engineers using world-class components
• Optimized around Sky High’s modular mounting and cooling ecosystem











Dimensions & Install Flexibility





• Dimensions:

• 11.81” (L) × 9.92” (W) × 3.13” (H)





Compact enough for:



• Glovebox or under-seat installs
• Clean wall-mounted layouts
• Stacked or vertical “amp rack” style builds











Wiring & Channel Configurations





Run the SHCA1600.4 exactly how your system needs:



• 4-Channel Mode:

• Full-range stereo across all four channels
• 3-Channel Mode:

• Channels 1 & 2 as individual full-range
• Channels 3/4 bridged for a dedicated mid-bass or sub channel
• 2-Channel Mode:

• Channels 1/2 bridged + channels 3/4 bridged





RCA Input Options:



• Can be run from 2 or 4 channels of input, depending on your signal setup





Perfect for active front stages, pro audio doors, and flexible multi-speaker builds.









Efficiency & Airflow





• High-efficiency circuit layout reduces internal heat and electrical stress
• Standard acrylic backplate with internally mounted cooling fan
• Designed to handle:

• Long demo sessions
• High-output daily use
• Hot environments, without heat-soak drop-off











Customization That Stands Alone





Flippable Branding System



• Diamond-cut aluminum Sky High logo and model plates
• Fully reversible for clean orientation in any mounting position (vertical, horizontal, stacked)





Modular Center Panel (Sold Separately)

Drop-in customizable overlays with no adhesives or heavy fab work needed:



• Forged carbon
• Mirror stainless
• Paint-matched aluminum
• Acrylic/plexi light-up options
  Just unbolt, swap, and re-install.











Power Input Flexibility





Input Expansion Kits (Sold Separately)



• Add more 12V power delivery points for high-demand builds
• Available in:

• Cast aluminum
• CNC’d aircraft-grade aluminum
• Copper





Ring Terminal Adapters (Sold Separately)



• Ideal for tight fitments and ultra-clean panels
• Bolt-on design for secure, low-resistance connections











Cooling System Expandability

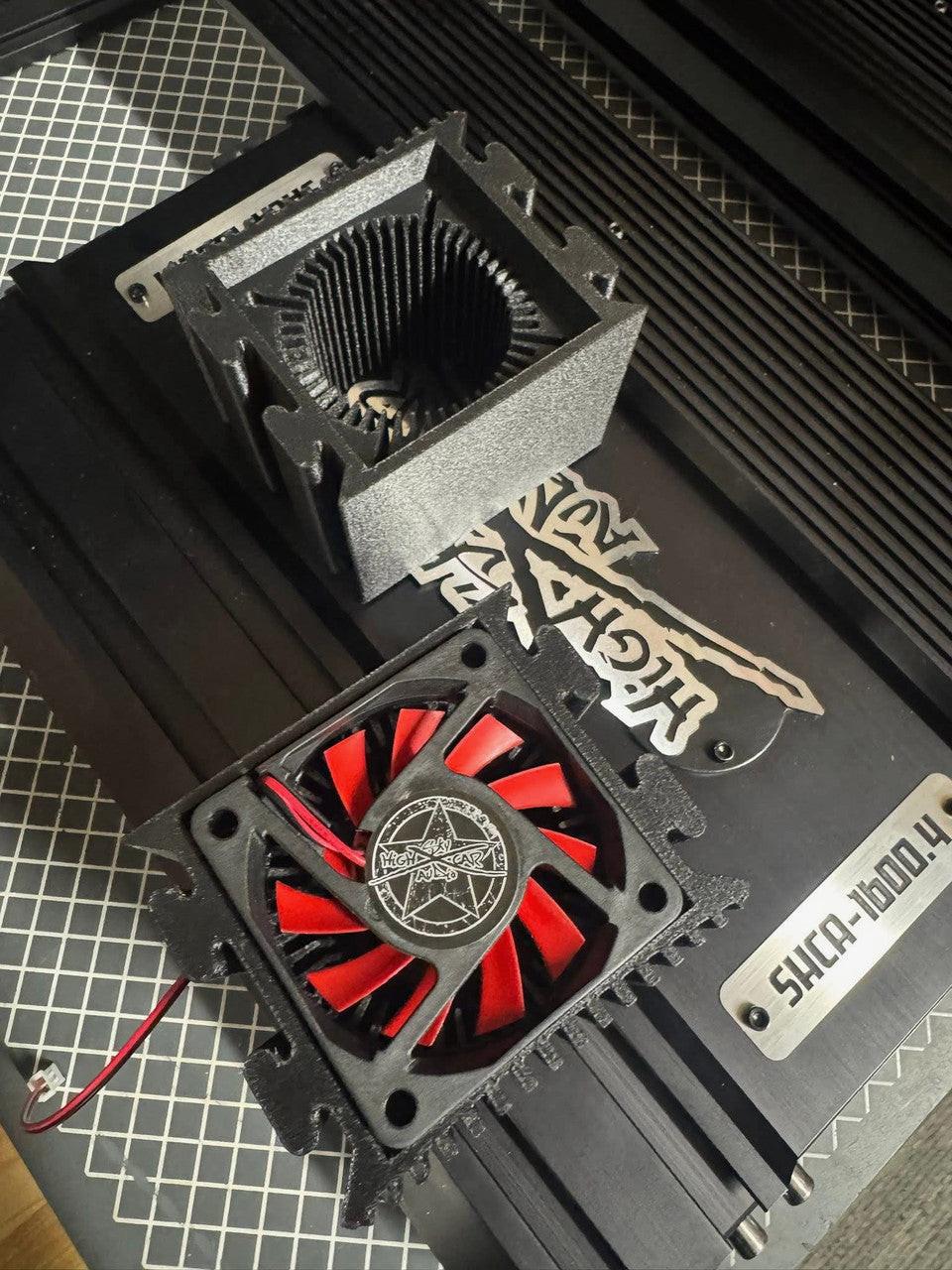

Passive Cooling Add-Ons (Sold Separately)



• Slide-in extruded aluminum heatsink overlays
• Increase surface area up to 25%
• Available in 5 color options and raw aluminum for custom finishes:

• Plain, powder-coated, dipped (gold/chrome/copper/rose gold), polished, and more
• Note: Non-anodized coatings can affect cooling performance

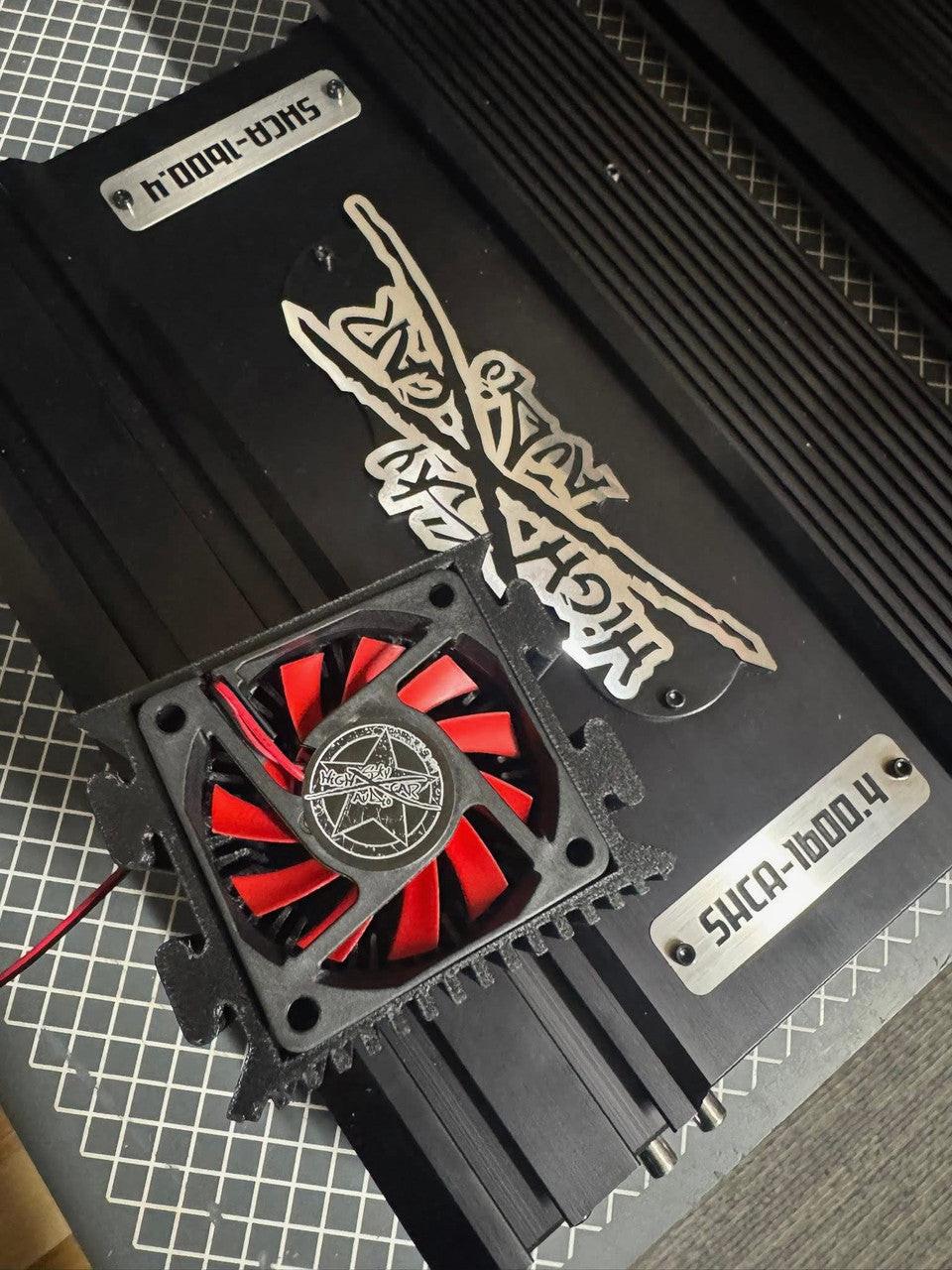

Active Cooling (Sold Separately)



• Push/pull fan kits mount to the extruded heatsink extensions
• Plug into the (4) onboard 12V outputs
• Optional thermal bridges for shared airflow between linked amps





2026 Water Cooling Ready



• Future bolt-on water-cooled heatsink system (in development)
• Includes pump, radiator, and lines (optional tank available separately)











CAT6 Remote System Compatibility





• Link up to 12 SHCA amps via CAT6
• Control: gain, subsonic, LPF, and phase from a single controller
• Monitor amp temperature and voltage
• Fully compatible with the Sky High Smart Bass Knob











Mounting Options for High-End Builds





As with every SHCA amplifier, the 1600.4 is built for modular mounting:



Bracket Kits (Sold Separately) Support:



• Stacking
• Vertical mounting (adjustable and static options)
• Floating wall installs
• Side-by-side linking





Use the proprietary slide-lock channels in the heatsink to secure your brackets.



Bracket Material Options:



• Extruded aluminum – lightweight and modular
• Cast aluminum – durable and economical
• Machined billet aluminum – show-grade





Optional Footless Endcaps



• Smooth, footless ends for flush mounting on clean walls or rail-based racks











Detented Signal Tuning





• Tactical detent (“click lock”) style potentiometers for:

• Low-Pass Filter
• High-Pass Filter





Lock in your tuning with tactile, repeatable adjustments—no guessing, no fine-tool needed, easy to match settings side-to-side.









SHCA1600.4 – Big Performance. Compact Footprint.





The SHCA1600.4 brings the same reliability, modular mounting, and visual customization as Sky High’s flagship amps—but in a smaller package that’s perfect for clean front stages, pro audio doors, or multi-amp systems. Compact, flexible, and expansion-ready, it’s built to power your current setup and whatever you decide to add next.
