Stealth Energy

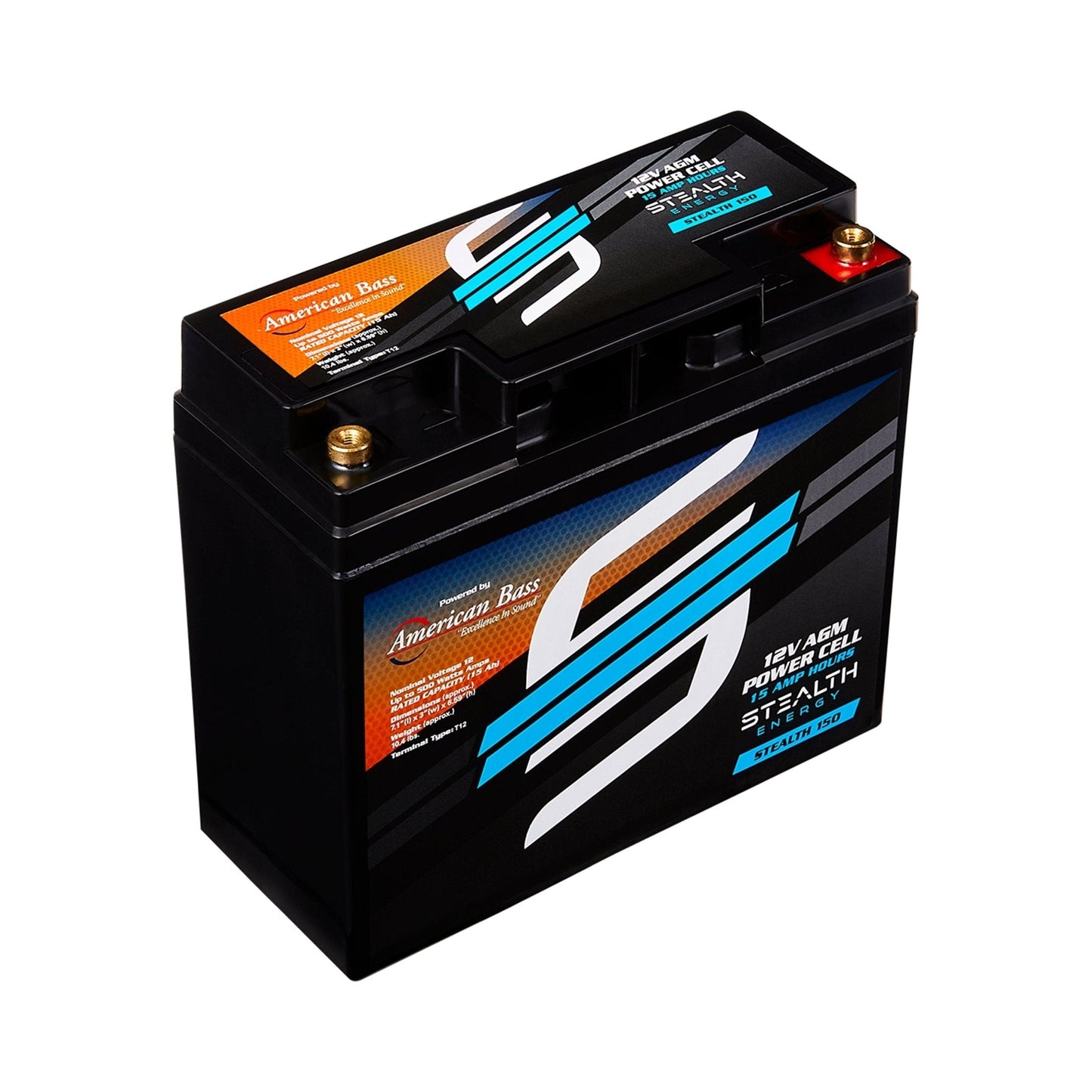

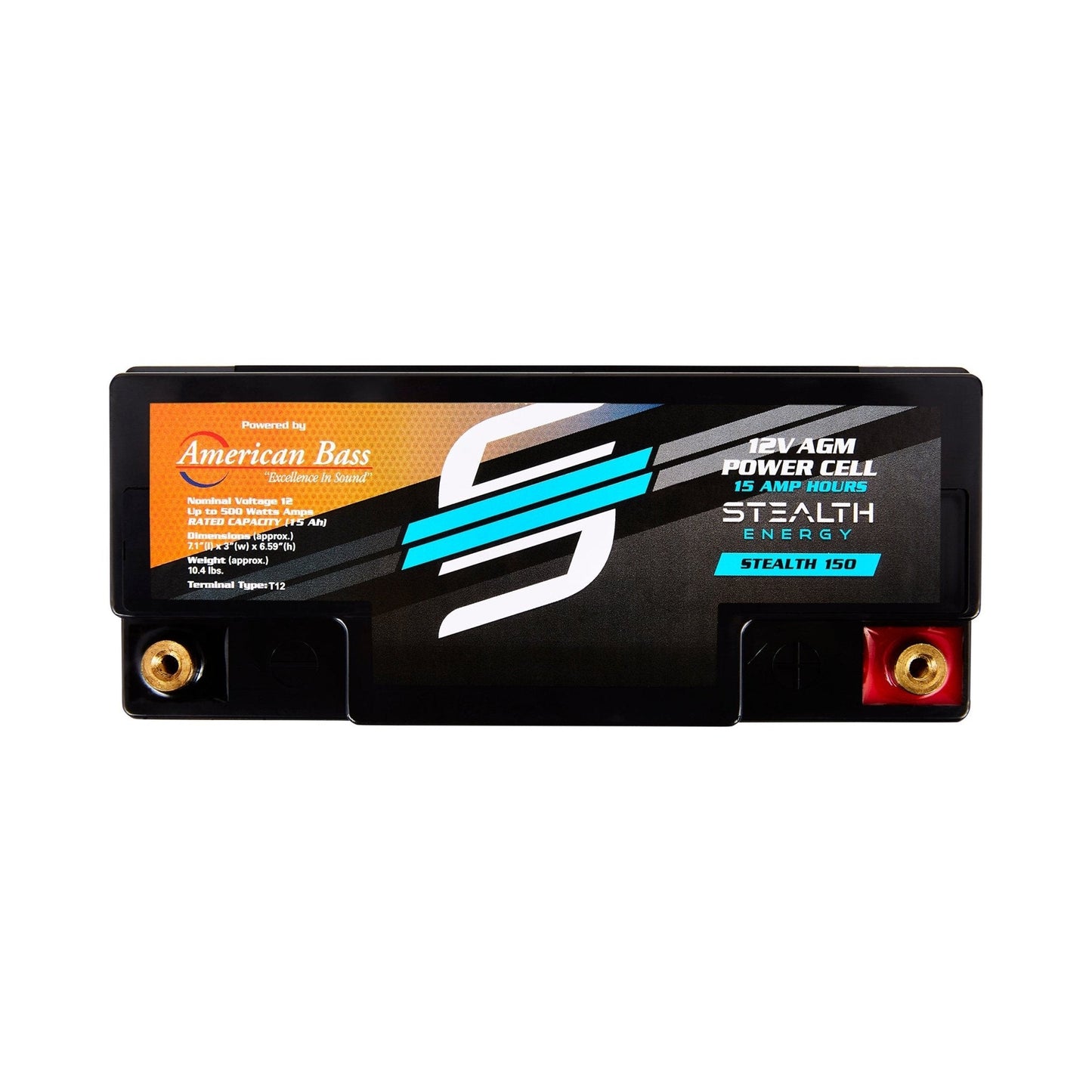

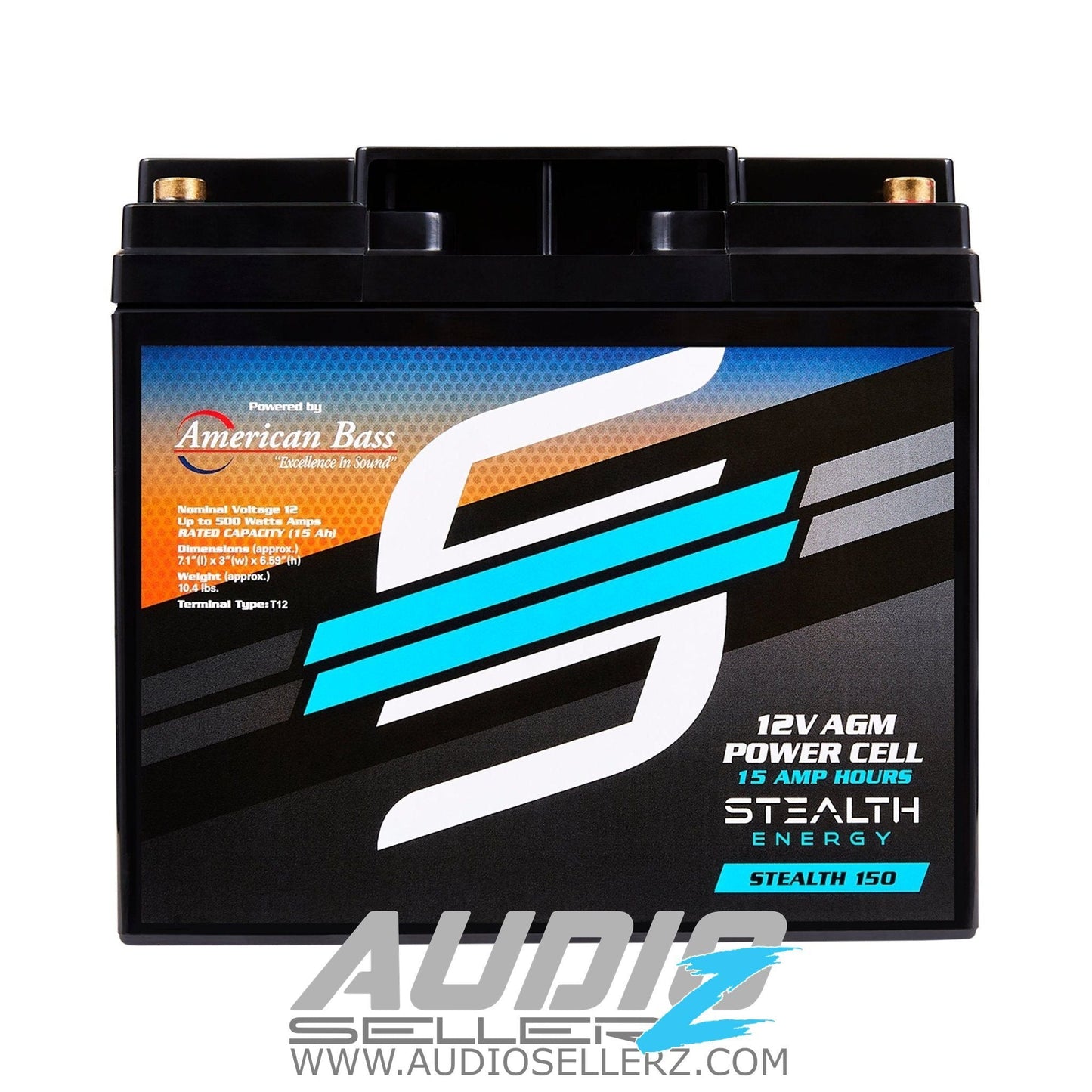

Stealth 150 Battery

Name: Stealth 150 Battery
Brand: Stealth Energy
SKU: ST-150
Price: 98.95 USD
Availability: OutOfStock

$98.95 USD

~~$119.99 USD~~ $98.95 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Up To 500 Watt Amplifiers

12V AGM Battery, 15 AH

NOMINAL VOLTAGE	12V
NOMINAL CAPACITY(20HR)	15.0AH
APPROX WEIGHT	Approx 4.9 kg (10.8lbs)
TERMINAL	T12
CONTAINER MATERIAL	ABS
MAX. DISCHARGE CURRENT	225A (5s)
INTERNAL RESISTANCE APPROX	18mΩ
NOMINAL OPERATING TEMP. RANGE	25 3 C (77 5 F )
DIMENSION	Length: 181.5 2mm (7.14 inches) Width: 76.5 2mm (3.01 inches) Container Height: 167.5 2mm (6.59 inches) Total Height (with Terminal): 167.5 2mm (6.59 inches)
RATED CAPACITY	15.0 AH/0.75A: (20hr ,1.80V/cell,25 C/77 F) 14.0 AH/1.40A: (10hr ,1.80V/cell,25 C/77 F) 12.8 AH/2.55A: (5hr ,1.75V/cell,25 C/77 F)11.5 AH/3.83A: (3hr ,1.75V/cell,25 C/77 F) 9.42 AH/9.42A: (1hr ,1.60V/cell,25 C/77 F)
CAPACITY AFFECTED BY TEMPERATURE	40 C (104 F): 103% 25 C (77 F): 100% 0 C (32 F): 86%
OPERATING TEMP.RANGE	Discharge: -15 50 C (5 122 F) Charge: 0 40 C (32 104 F) Storage: -15 40 C (5 104 F)
CYCLE USE	Initial Charging Current less than 4.5A.Voltage 14.4V~15.0V at 25 C(77 F)Temp. Coefﬁcient -30mV/ C
STANDBY USE	No limit on Initial Charging Current Voltage 13.5V~13.8V at 25 C(77 F)Temp. Coefﬁcient -20mV/ C
SELF DISCHARGE	Batteries may be stored for up to 6 months at 25 C(77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.
