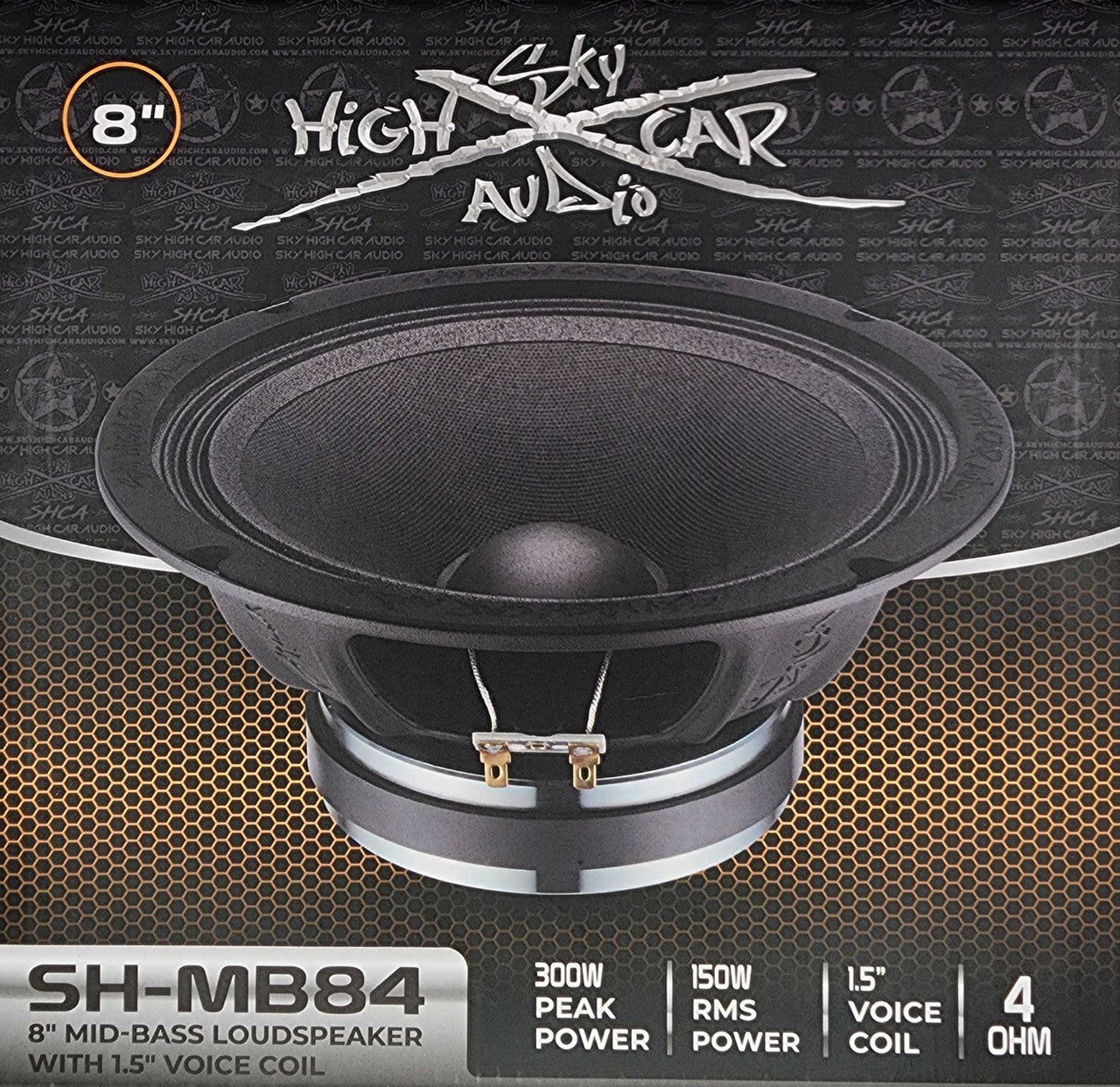

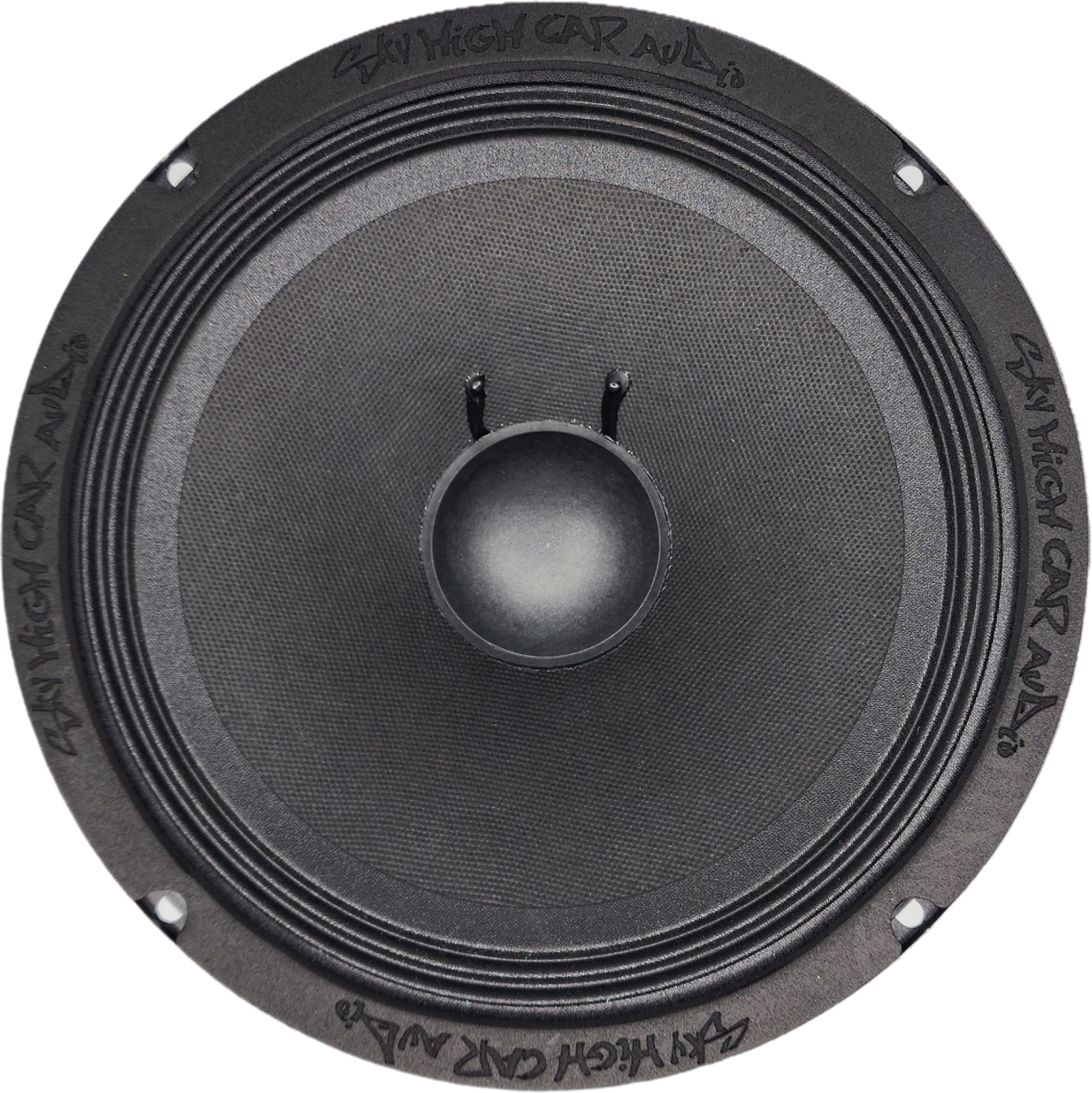

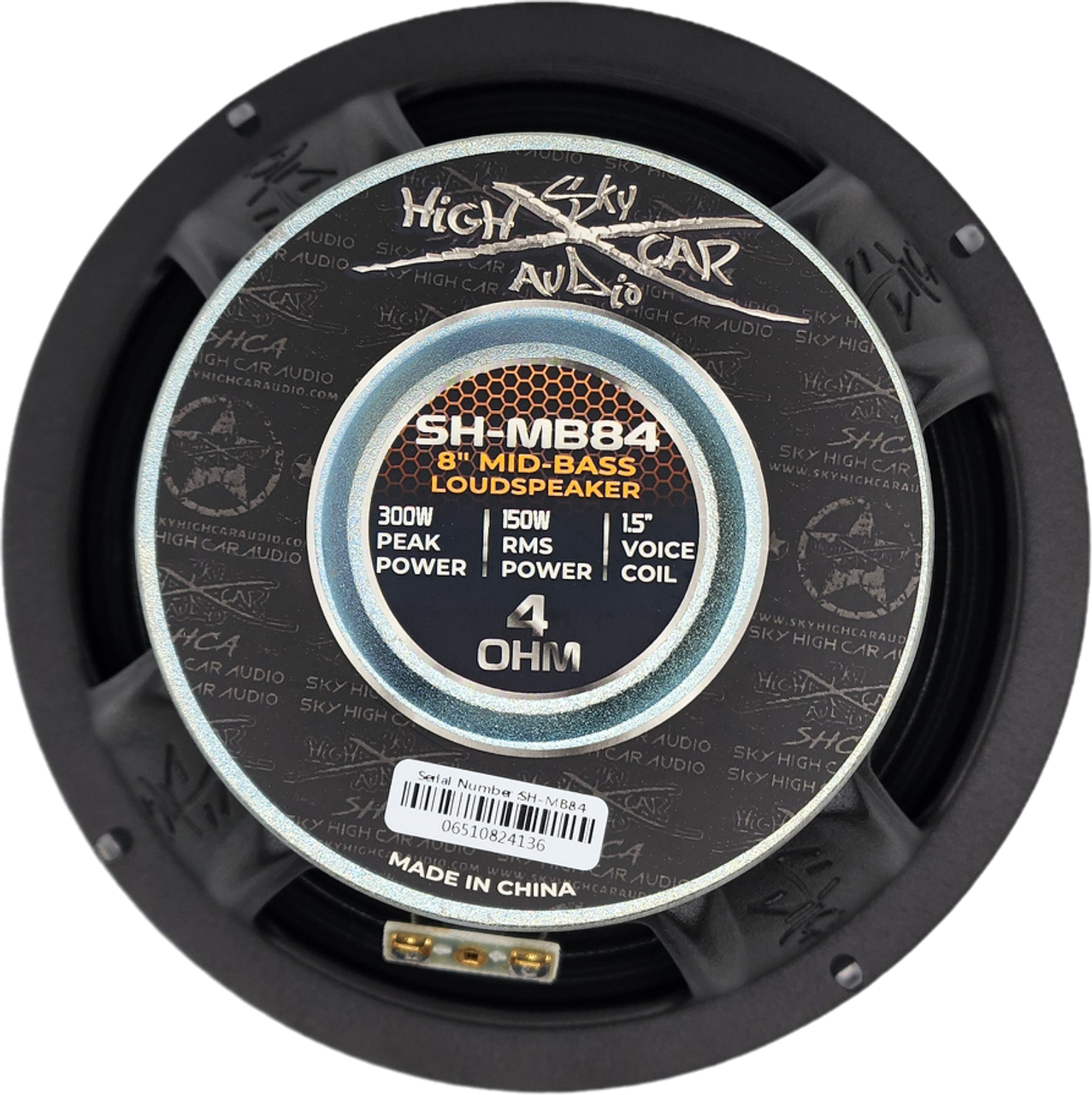

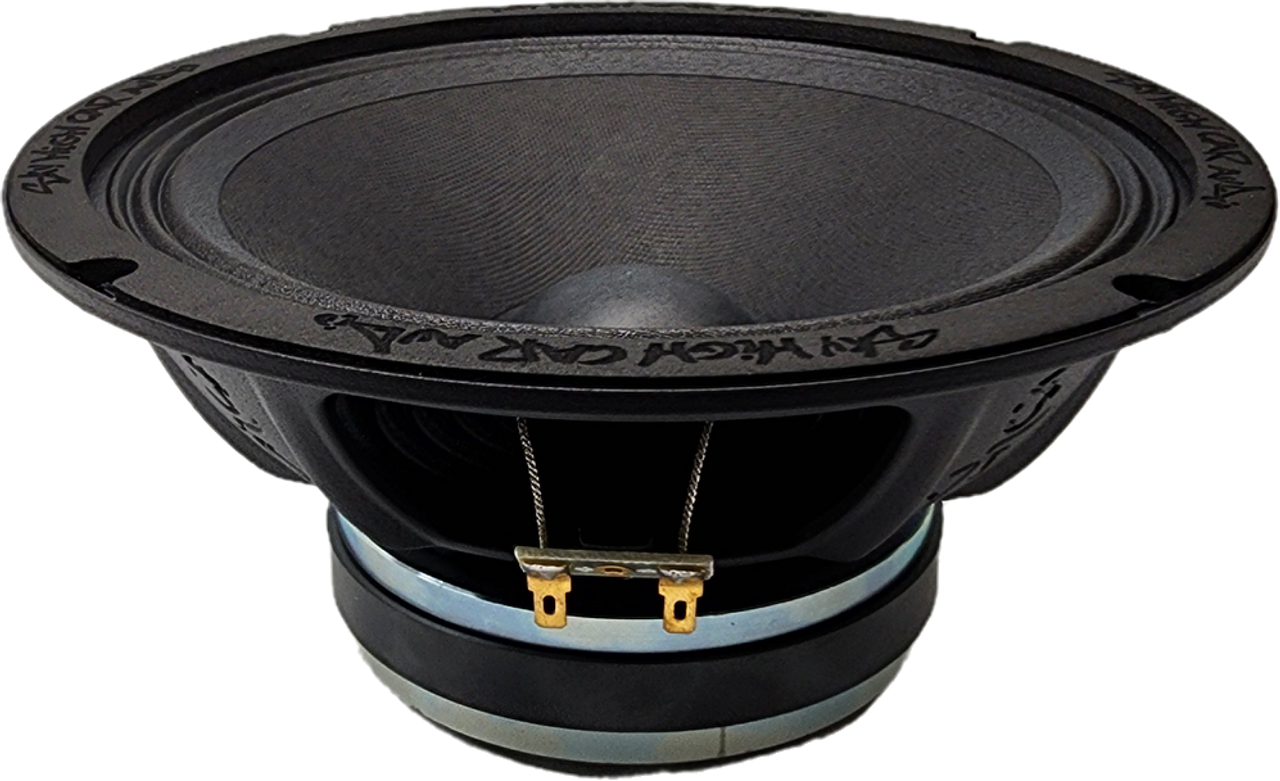

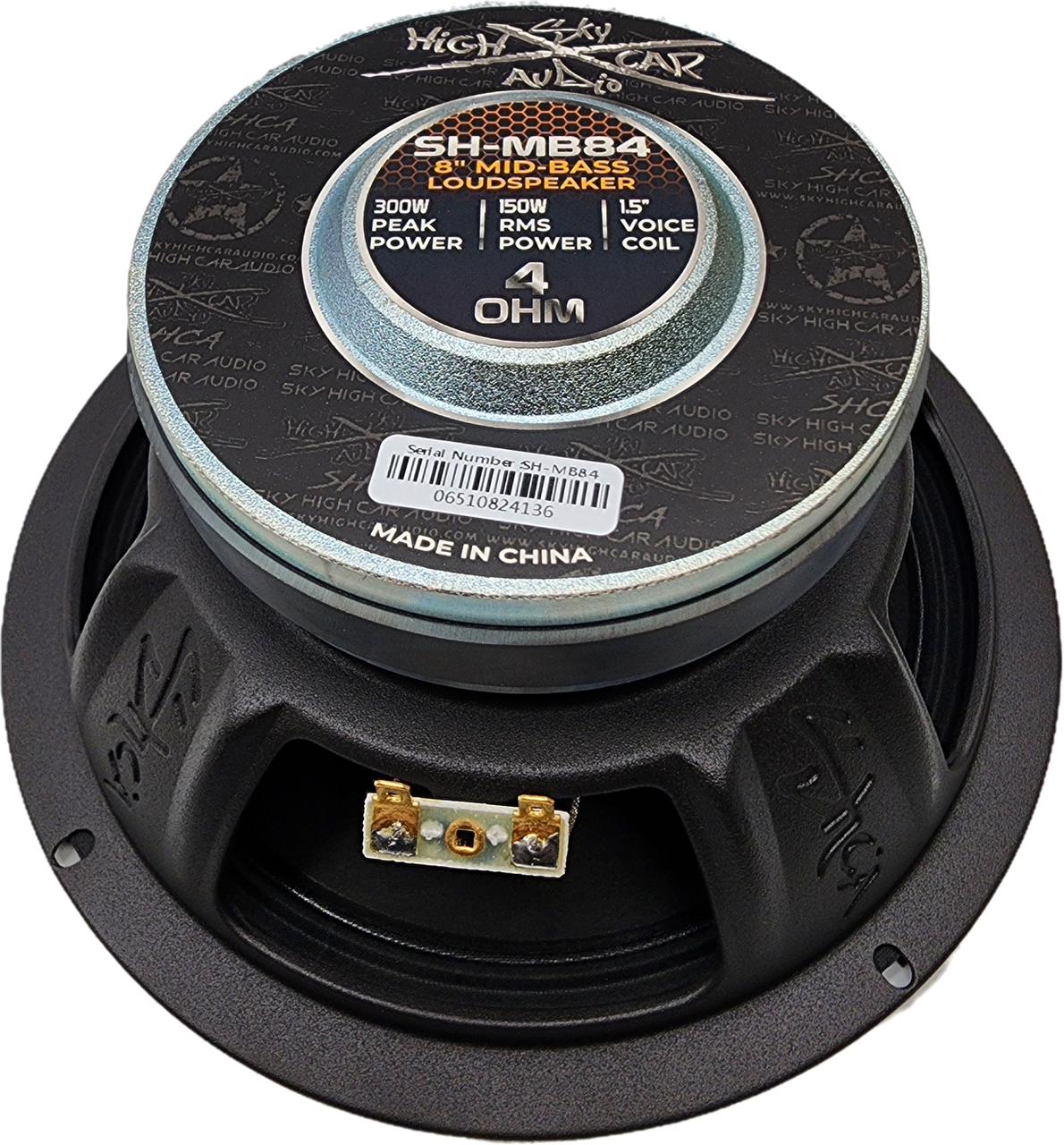

SHCA Pro Audio MB84 8" Mid-Bass Loudspeaker with 1.5" Voice Coil (Single)

Punchy, accurate mid-bass for builds that need real impact. The MB84 pairs a stout ferrite motor with a lightweight paper cone and cloth surround to deliver tight, musical punch from ~85 Hz to 6 kHz—perfect for door pods, kick panels, or rear decks in pro-audio style systems.

Key Features

• Power you can lean on: 150W RMS / 300W peak for consistent output without strain
• High efficiency: 96 dB (1W/1m) sensitivity for big sound on modest power
• True mid-bass tuning: 85 Hz – 6 kHz range for punchy drums, bass guitar, and vocal body
• Durable build: Non-pressed paper cone, cloth surround, satin-black steel basket
• Heat-ready motor: 1.5″ CCAW voice coil on Kapton former + 20 oz ferrite magnet
• Installer friendly: 8.2″ overall diameter, 7.0″ cutout, 3.6″ mounting depth

Performance Notes

• Thiele/Small: Fs 85 Hz • Vas 16.4 L • Qts 0.34 • BL 7.82 • Xmax 9.8 mm
• Works great in sealed or small vented pods; start with a HPF around 80–120 Hz and adjust to taste and power.

Specifications

• RMS / Peak: 150W / 300W
• Sensitivity: 96 dB (1W/1m)
• Frequency Response: 85 Hz – 6 kHz
• Voice Coil: 1.5″ CCAW on Kapton
• Magnet: 20 oz ferrite
• Cone / Surround: Paper / Cloth
• Basket: Steel, satin black
• Dimensions: 8.2″ OD • 7.0″ cutout • 3.6″ mounting depth • 3.8″ overall depth

What’s in the Box

• (1) MB84 8″ Mid-Bass Loudspeaker

Sold individually. Add two for a pair.
